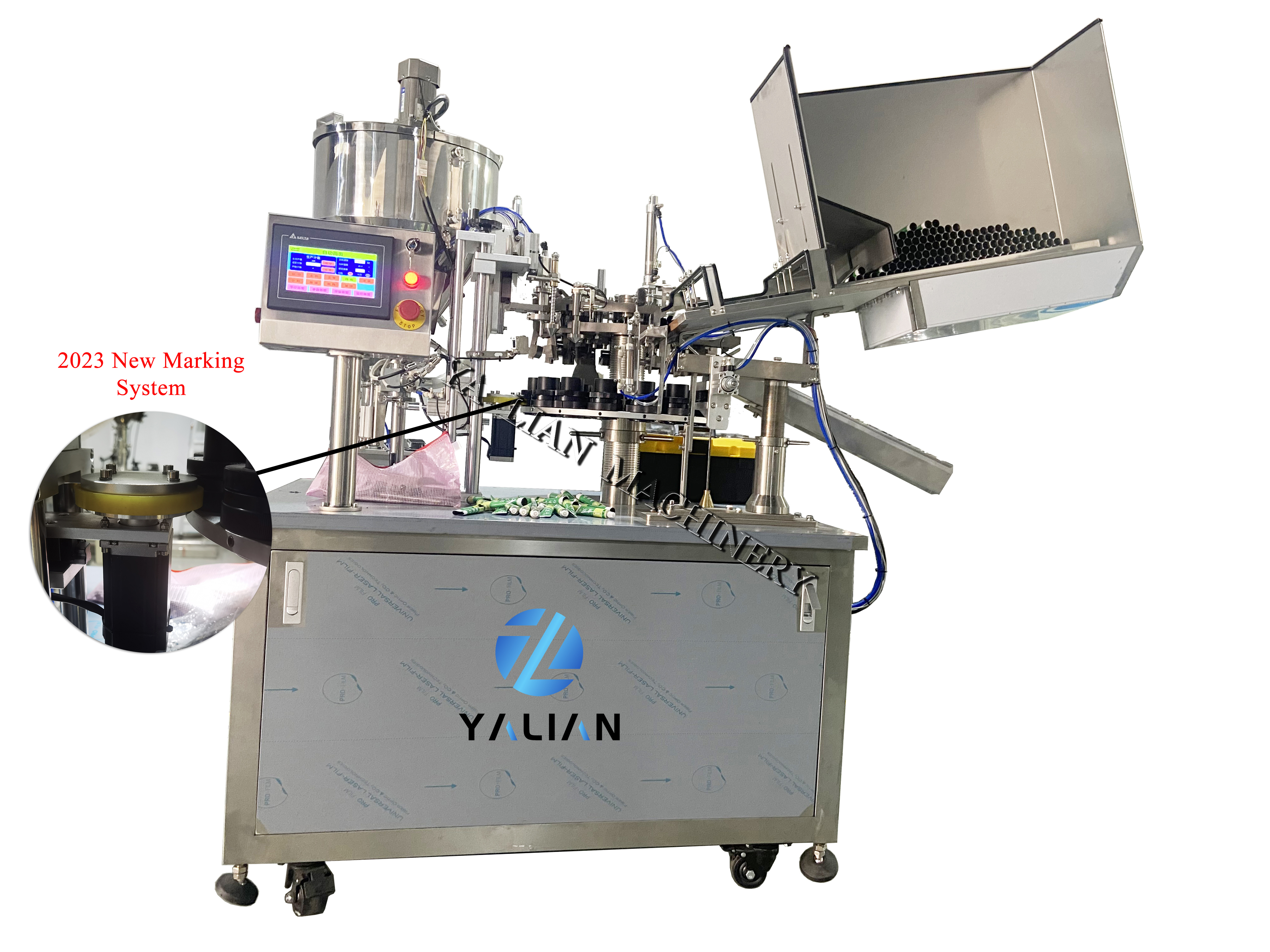

About 2023 Aluminum pipe filling and sealing machine with automatic tube loading system, automatic marking system, printing date system ,filling and sealing system and mold replacement system.
In order to facilitate the operation, We upgraded the marking system, Now the performance is more stable, faster and accurate ,Therefore, the quality of filling and sealing is further improved.

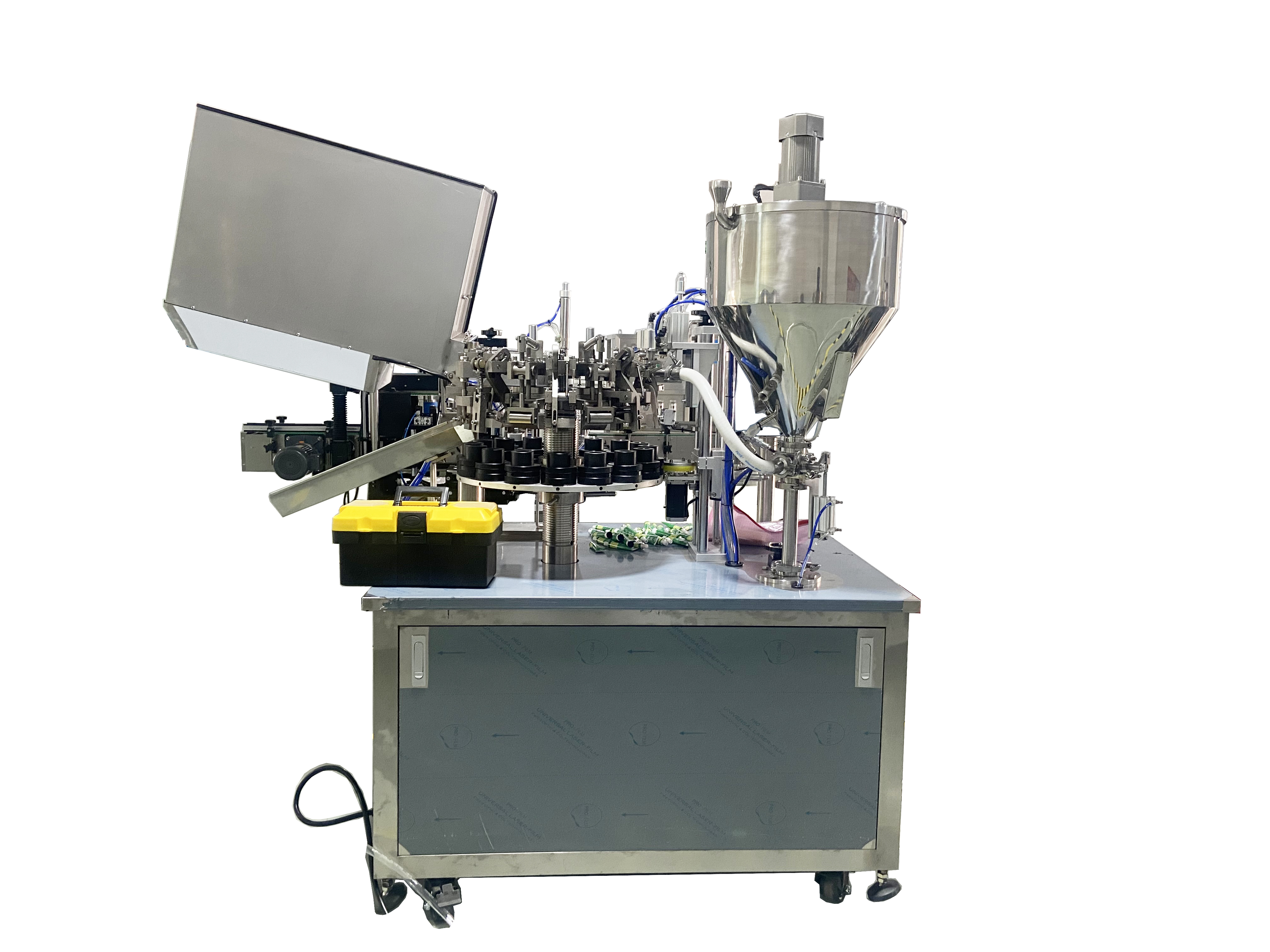

Parameters of this aluminum pipe filling and sealing machine
Model | Filling and Sealing Machine |
Power Supply | 110-240V 50/60Hz 1Ph/220-,50-60HZ,1Ph 1200W |
Sealing Diameter | 15-30mm |
Sealing Height | 60-200mm |
Machine Size | 1100*780*150 |
The packaging material of the product determines the equipment structure, system and design and working logic.

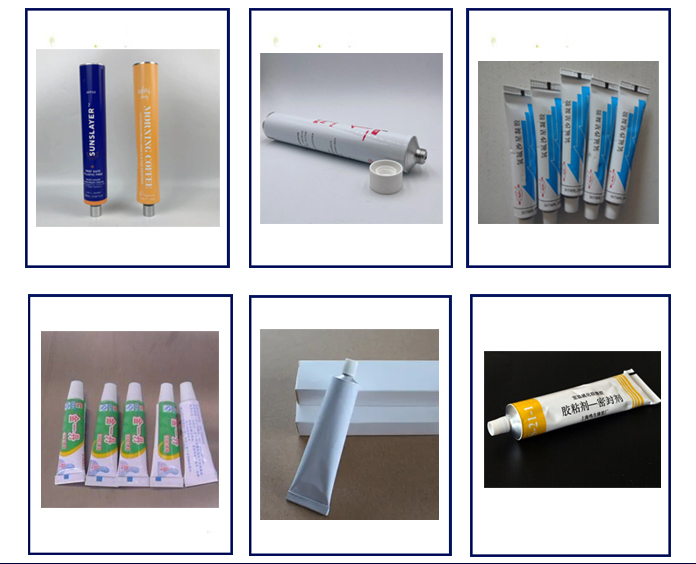

According to the market research, the current automatic metal hose filling and sealing machine according to the different packaging materials used, mainly has the following forms:
According to the automatic metal hose filling and sealing machine different structure, specifications, models, functions.
1. The use of sealing data two by rolling metal lid deformation, and container combined with each other curling hook, in order to close the container, called rolling edge sealing machine. Metal filling and sealing machine belongs to this category.
2. Use sealing auxiliary materials, such as binder, suture, metal nail, etc., to seal the end of the packaging container, such as stitching machine, stitching machine, binder sealing machine, etc., all belong to this category.
3. Do not use sealing materials, using the performance characteristics of thermoplastic plastics, using the method of hot sealing packaging container sealing machine.
4. The tail folding method is used to make the metal hose packaging material tail 3 fold for this packaging material common shoe ointment.
Now pharmaceutical, daily chemical, chemical, video and other industries from the convenience of product packaging, safety and price consideration, more than 90% of the selection of polyethylene (PE and polypropylene (PP) plastic. So I mainly use the third form of hot pressing sealing tail.
Main structure characteristics and working principle of automatic metal hose filling and sealing machine: The filling and sealing machine mainly has various series of filling and sealing machines with bracket and clamp tooth number, in order to meet the needs of various existing production lines. The structure not only greatly reduces the assembly workload and delivery time, but also can meet (adapt to) various needs of users, more convenient equipment maintenance. The lower principle is to use volume (plunger) type pressure metering filling, hot pressing sealing and rolling coordinate way to realize the filling material of automatic ointment filling and sealing.

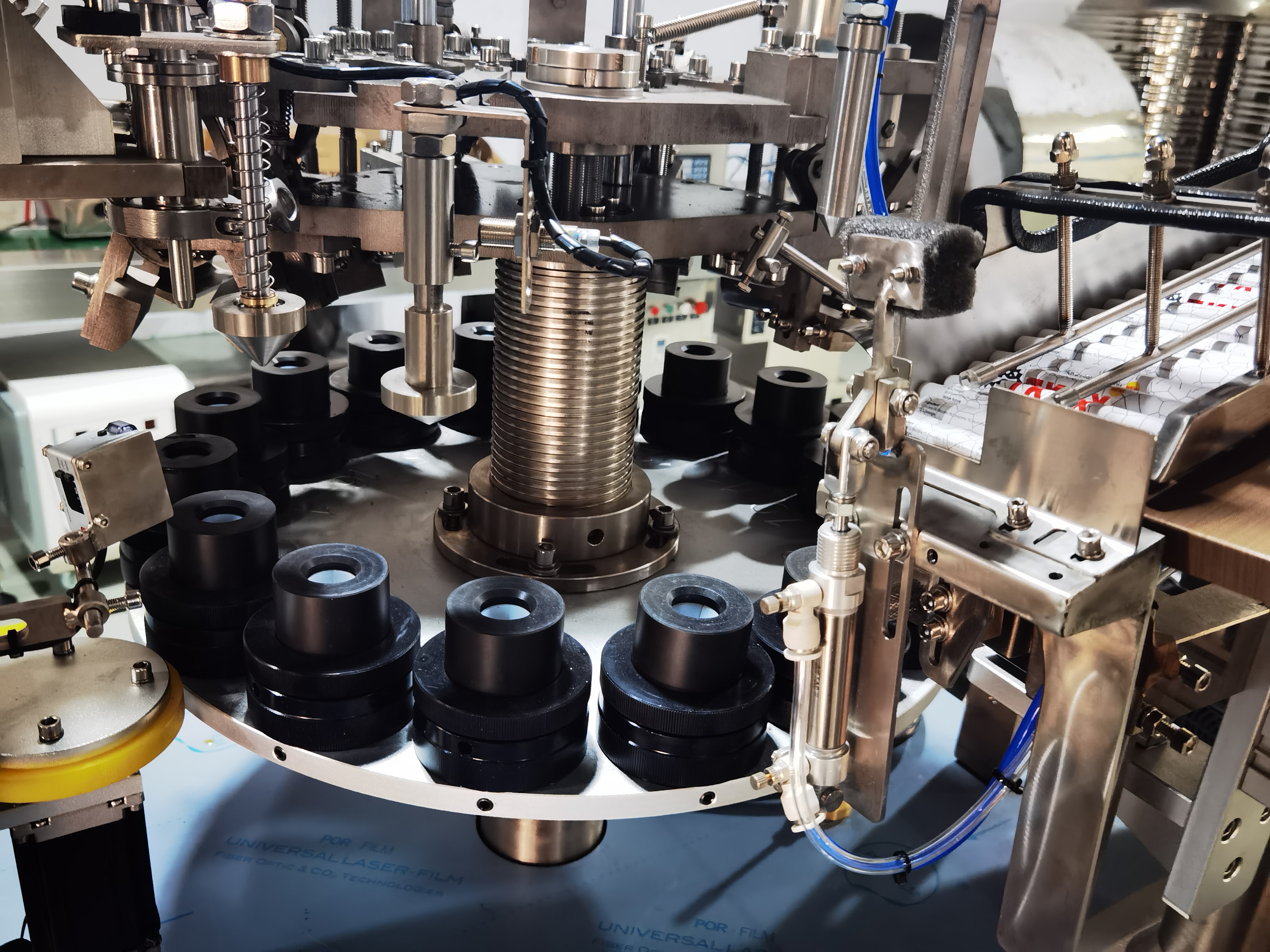

The working process and steps are as follows: The hoses to be filled are lifted up by the automatic lifting device and placed neatly on the large-capacity hose loading rack, so that the hoses are neatly arranged in a single row front and back. After the hose is rotated by the automatic tube loading device from the horizontal position to the vertical position by 900, the hose is automatically inserted into the positioning tube seat one by one. The positioning tube seat and the inserted hose rotate together with the rotary plate, until they are transferred to the filling station. The conical cylinder filled with paste is injected into the hose which stays intermittently at the filling station accurately and automatically through the feeding rotary valve which is directly connected with the cylinder. The rotary plate continues to rotate, and the hose which has been injected with paste is heated by the heater and then to the station of the clamping tooth number manipulator and the tail-cutting manipulator to seal and trim the end of the hose.
The finished product is ejected through the automatic pipe outlet mechanism and the waste pipe is automatically sent to the pipe container outside the machine. In this process, I could also obtain different filling capacities by adjusting the handle of filling capacity adjustment, complete the hot melt sealing work of full plastic pipes and composite pipes of different diameters by changing different molds, and automatically print the production date, production lot number and other characters on the tail of the hose, so as to complete the whole process of the production filling and sealing machine.
